HORSEGUARD Fence Manual
Page 31
Prev. View Cart

Electrical Connections for Mono-Polar tape

 Index Next


To avoid poor contacts, rust, sparks, power leakage and all sorts of problems,
HorseGuard recommends the use of this type of connections only.

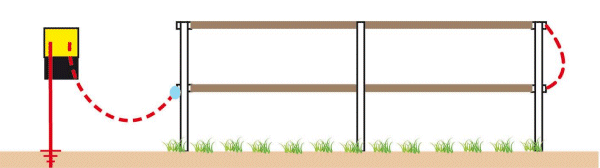

The Fence charger must be connected to a long ground rod and to a high-tension cable.

The Fence charger must be connected to a long ground rod and to a high-tension cable.
To bring the power to the fence
never...set the connection directly onto the tape! Use a tensioner #36W


Before you can make electrical connections, you must first know what type wire to use for the installation, In an Electric Fence we recommend a high tension cable : #28M which can carry 12000 volts.
High tension cable #28V is the same but GREEN.

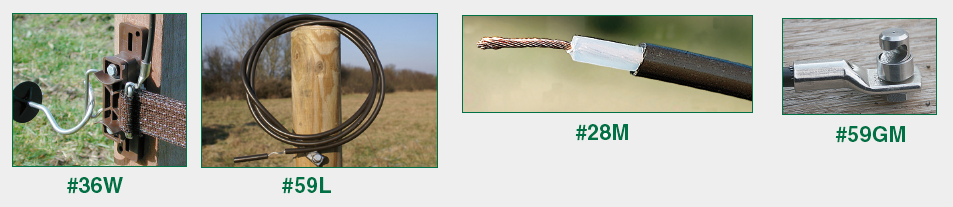

36WTensioner f wood post
for wood post 7.79 Click here to add this product to your shopping cart Click here to add this product to your shopping cart
59L5ft Charger Connector Wire
fence to charger 6.99 Click here to add this product to your shopping cart Click here to add this product to your shopping cart
59HInter connector wire
top to bottom strand 8.99 Click here to add this product to your shopping cart Click here to add this product to your shopping cart
28MBrown H.T. Cable /ft
Brown
 0.51 Click here to add this product to your shopping cart Click here to add this product to your shopping cart
59GMConnector for 28M
from buckle to wire 3.89 Click here to add this product to your shopping cart Click here to add this product to your shopping cart
CRIMP59New Crimper tool
12.99 Click here to add this product to your shopping cart Click here to add this product to your shopping cart

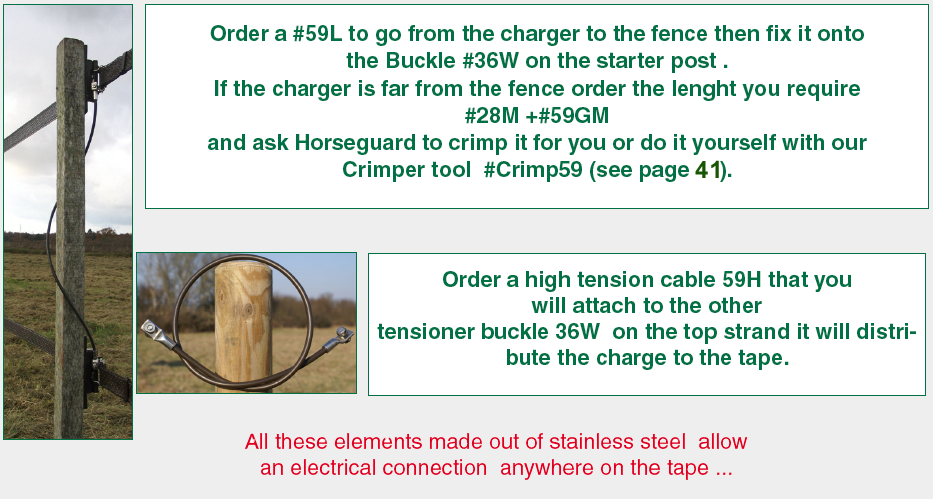

Order a #59L to go from the charger to the fence then fix it onto the Buckle #36W on the starter post . If the charger is far from the fence order the lenght you require #28M +#59GM and ask Horseguard to crimp it for you or do it yourself with our Crimper tool #CRIMP59 Order a high tension cable 59H that you will attach to the other tensioner buckle #36W on the top strand it will distribute the charge to the tape.

36WTensioner f wood post
for wood post 7.79 Click here to add this product to your shopping cart Click here to add this product to your shopping cart

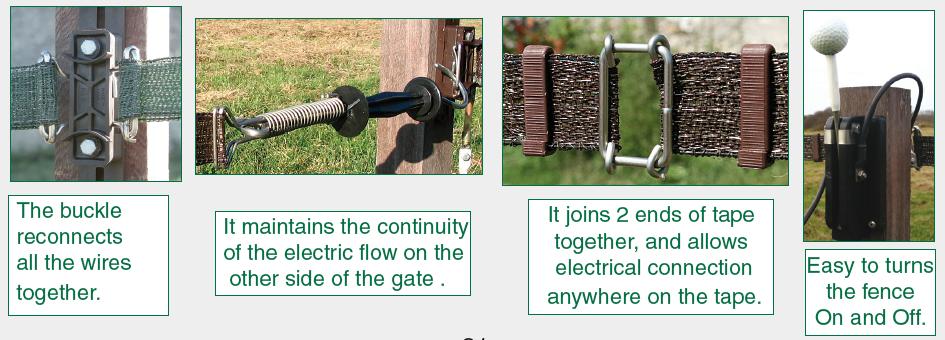

11Spring Gate handle
one per strand 13.69 Click here to add this product to your shopping cart Click here to add this product to your shopping cart
24Splicer buckle
one/spool 2.99 Click here to add this product to your shopping cart Click here to add this product to your shopping cart
52Golf Ball Fence switch
off/on 23.99 Click here to add this product to your shopping cart Click here to add this product to your shopping cart
