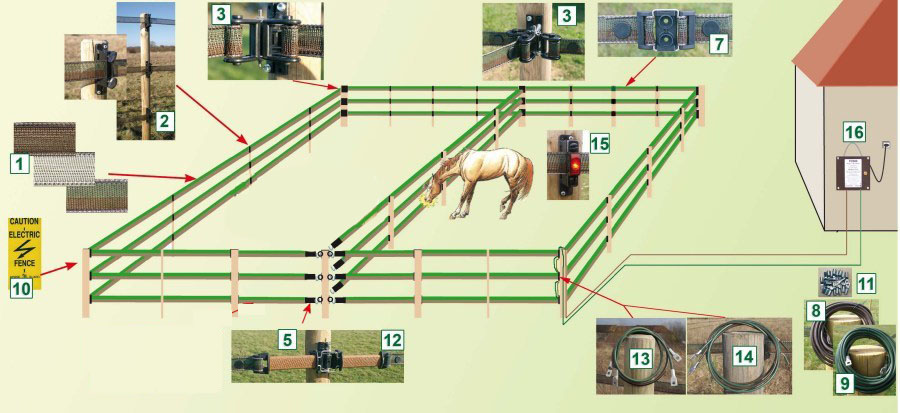

Typical fence layout for Horseguard Bi-Polar Tape

---

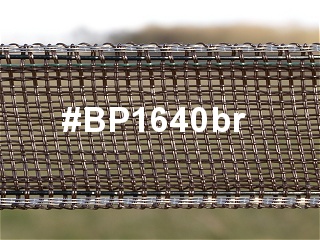

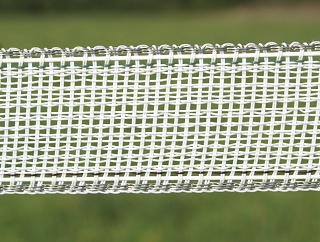

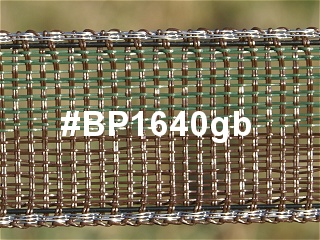

1. Brown/Green Tape - #BP1640 - 1640ft spool of bi-polar tape (or White)

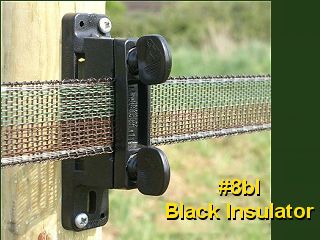

2. Line insulator #8br - One per strand of tape /per post.
3. Tensioner #9bl - One per corner /per strand
4. 3 Ways connection #9bl ->(= 3 way tensioner)

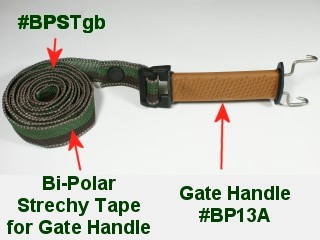

5. Gate handle #BP12 - One per strand of tape.

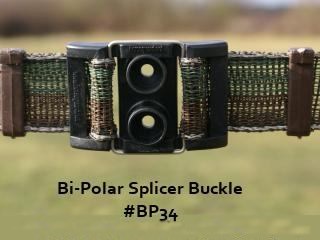

6. Splicing the tape #9bl - One per spool of tape
7. Brown High tension cable/ft #28M

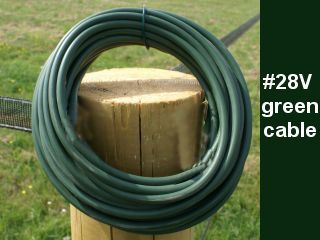

8. Green High tension cable

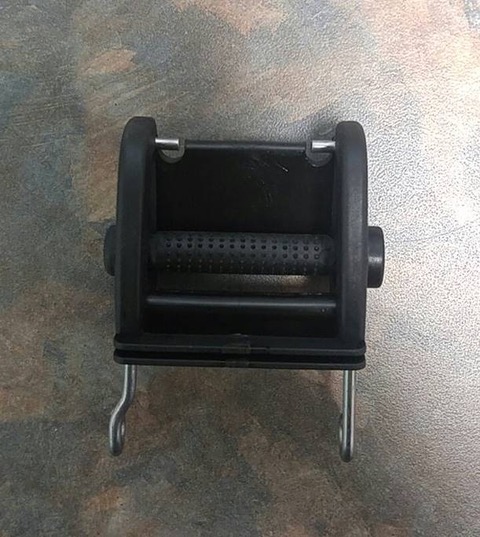

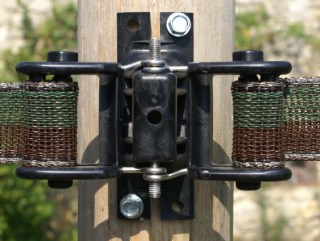

9. Bi-Polar Tensioner #9bl + connectors (Lugs 2-4 per tensioner)
10. Warning signs #42 - One per 300 ft of fence
11. Fence Switch #52XP
12. Fence Charger #FC500
13. Keeper Clip #CLIPbr ( 1/gate handle)

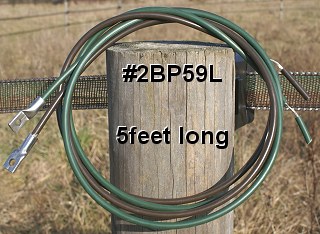

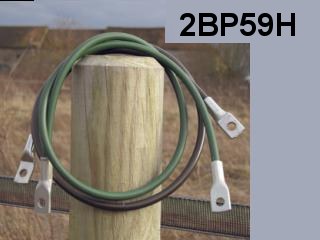

14. 2 Bi-Polar jumper cables(2ft)+lugs #BP59H ( 1/gate handle)

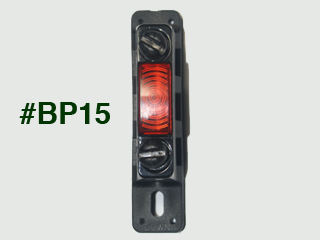

15. Bi-Polar Little light in the prairie #15BP ( 1/gate handle)

Click on the #ref below to see an image:
HorseGuard Bi-Polar Fence Layout.

We offer two types of low impedance fence chargers, they are made in USA, weatherproof, specially designed for Horseguard.
2 Year Warranty by the Manufacturer
Serviced directly by the Manufacturer.
They should not be put on the ground

#FC500 -A Plug in Charger 110/120 volt, that will ensure 7000 volts on a 3 miles fence.
FC500 Fence Charger 220.00
#FC6S -A Solar Charger 6 volts, that will ensure 7000 volts on a 3 miles fence. A solar charger is made for sunny places, it has to be exposed towards south. Within a period without sun the charger will last is about 2/3 days. The plug has been added to correct the lack of sun, so you can recharge the box directly, for 2 or 3 hours ONLY and put it back onto the fence. IT IS NOT MADE FOR CONTINOUS PLUG-IN AT ALL.
FC6S Fence charger 6V-Solar 285.00
